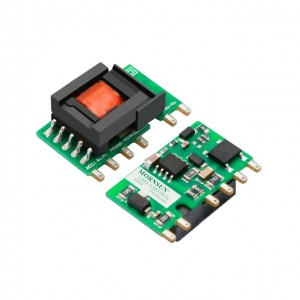

[金升陽] LS百搭型(3-15W)

LS系列是板載式單列直插封裝AC/DC模塊電源，功率范圍為3到15W，該系列產品體積超小，應用簡便且成本低——廣泛應用于智能家居、工業控制、電力儀表等應用領域。

該系列產品特點：

1、超寬輸入電壓范圍，電壓范圍可達85-305VAC

2、百搭應用、布局靈活（經濟實用）

3、符合 IEC62368，UL62368， EN62368 認證標準

系列標題功率
(W) 輸入電壓
(VAC) 輸入電壓
(VDC) 輸出電壓
(VDC) 輸出電流(A) 隔離電壓認證/標準技術手冊

LS03-13BxxR3 3000VAC

LS03-13B24R3 3 85~305 70~430 24 125mA 3000VAC

LS03-13B15R3 3 85~305 70~430 15 200mA 3000VAC

LS03-13B12R3 3 85~305 70~430 12 250mA 3000VAC

LS03-13B09R3 3 85~305 70~430 9 333mA 3000VAC

LS03-13B03R3 1.98 85~305 70~430 3.3 600mA 3000VAC

LS03-13B05R3 3 85~305 70~430 5 600mA 3000VAC

LS05-26BxxSS(-F) 4000VAC

LS05-26B24SS-F 5 90~528 100~745 24 210mA 4000VAC

LS05-26B24SS 5 90~528 100~745 24 210mA 4000VAC

LS05-26B15SS-F 5 90~528 100~745 15 340mA 4000VAC

LS05-26B15SS 5 90~528 100~745 15 340mA 4000VAC

LS05-26B12SS-F 5 90~528 100~745 12 420mA 4000VAC

LS05-26B12SS 5 90~528 100~745 12 420mA 4000VAC

LS05-26B09SS-F 5 90~528 100~745 9 560mA 4000VAC

LS05-26B09SS 5 90~528 100~745 9 560mA 4000VAC

LS05-26B05SS-F 4.25 90~528 100~745 5 850mA 4000VAC

LS05-26B05SS 4.25 90~528 100~745 5 850mA 4000VAC

LS05-13BxxR3 3600VAC

LS05-13B24R3 5 85~305 70~430 24 210mA 3600VAC

LS05-13B15R3 5 85~305 70~430 15 340mA 3600VAC

LS05-13B12R3 5 85~305 70~430 12 420mA 3600VAC

LS05-13B09R3 5 85~305 70~430 9 560mA 3600VAC

LS05-13B05R3 5 85~305 70~430 5 1000mA 3600VAC

LS05-13B03R3 3.3 85~305 70~430 3.3 1000mA 3600VAC

LS05-15BxxR3 3600VAC

LS05-15B24R3 5 85~418 100~591 24 210mA 3600VAC

LS05-15B15R3 5 85~418 100~591 15 340mA 3600VAC

LS05-15B12R3 5 85~418 100~591 12 420mA 3600VAC

LS05-15B09R3 5 85~418 100~591 9 560mA 3600VAC

LS05-15B05R3 5 85~418 100~591 5 3600VAC

LS05-15B03R3 3.3 85~418 100~591 3.3 3600VAC

LS05-13BxxR3-F 3600VAC

LS05-13B24R3-F 5 85~305 70~430 24 210mA 3600VAC

LS05-13B15R3-F 5 85~305 70~430 15 340mA 3600VAC

LS05-13B12R3-F 5 85~305 70~430 12 420mA 3600VAC

LS05-13B09R3-F 5 85~305 70~430 9 560mA 3600VAC

LS05-13B05R3-F 5 85~305 70~430 5 1000mA 3600VAC

LS05-13B03R3-F 3.3 85~305 70~430 3.3 1000mA 3600VAC

LS05-26BxxR3 4000VAC

LS05-26B24R3 5 90~528 100~745 24 210mA 4000VAC

LS05-26B15R3 5 90~528 100~745 15 340mA 4000VAC

LS05-26B12R3 5 90~528 100~745 12 420mA 4000VAC

LS05-26B09R3 5 90~528 100~745 9 560mA 4000VAC

LS05-26B05R3 5 90~528 100~745 5 1000mA 4000VAC

LS05-26B03R3 3.3 90~528 100~745 3.3 1000mA 4000VAC

LS05-13Dxx 3600VAC

LS05-13D0524-01 5 85~305 70~430 5,24 200mA,167mA 3600VAC

LS05-13D0512-03 5 85~305 70~430 5,12 200mA,330mA 3600VAC

LS05-23BxxDR3 4000VAC

LS05-23B24DR3 5 85~305 70~430 24 210mA 4000VAC

LS05-23B15DR3 5 85~305 70~430 15 340mA 4000VAC

LS05-23B12DR3 5 85~305 70~430 12 420mA 4000VAC

LS05-23B09DR3 5 85~305 70~430 9 560mA 4000VAC

LS05-23B05DR3 5 85~305 70~430 5 1000mA 4000VAC

LS05-23B03DR3 3.3 85~305 70~430 3.3 1000mA 4000VAC

LS05-13Hxx

LS05-13H0512-01 5 85~305 70~430 5,12 760mA,100mA

LS05-13H0505-02 5 85~305 70~430 5,5 800mA,200mA

CLS05-13B12R3 3600VAC

CLS05-13B12R3 5 85~305 70~430 12 420mA 3600VAC

CLS05-15B12R3 3600VAC

CLS05-15B12R3 5 85~418 100~591 12 420mA 3600VAC

LS05-13BxxR3S 3600VAC

LS05-13B24R3S 5 85~305 100~430 24 210mA 3600VAC

LS05-13B15R3S 5 85~305 100~430 15 340mA 3600VAC

LS05-13B12R3S 5 85~305 100~430 12 420mA 3600VAC

LS05-13B09R3S 5 85~305 100~430 9 560mA 3600VAC

LS05-13B05R3S 5 85~305 100~430 5 1000mA 3600VAC

LS05-13B03R3S 3.3 85~305 100~430 3.3 1000mA 3600VAC

LS08-15BxxR3P 3600VAC

LS08-15B24R3P 8 176~418 250~590 24 0.33A 3600VAC

LS08-15B15R3P 8 176~418 250~590 15 0.53A 3600VAC

LS08-15B12R3P 8 176~418 250~590 12 0.67A 3600VAC

LS08-15B09R3P 8 176~418 250~590 9 0.88A 3600VAC

LS08-15B05R3P 8 176~418 250~590 5 1.6A 3600VAC

LS08-15B03R3P 5.28 176~418 250~590 3.3 1.6A 3600VAC

LS10-13BxxR3 3600VAC

LS10-13B24R3 10 85~305 100~430 24 420mA 3600VAC

LS10-13B15R3 10 85~305 100~430 15 670mA 3600VAC

LS10-13B12R3 10 85~305 100~430 12 830mA 3600VAC

LS10-13B09R3 10 85~305 100~430 9 1100mA 3600VAC

LS10-13B05R3 10 85~305 100~430 5 2000mA 3600VAC

LS10-13B03R3 6.6 85~305 100~430 3.3 2000mA 3600VAC

LS10-13BxxR3P(-F) 3600VAC

LS10-13B24R3P-F 10 85~305 90~430 24 420mA 3600VAC

LS10-13B15R3P-F 10 85~305 90~430 15 670mA 3600VAC

LS10-13B12R3P-F 10 85~305 90~430 12 830mA 3600VAC

LS10-13B09R3P-F 10 85~305 90~430 9 1100mA 3600VAC

LS10-13B05R3P-F 10 85~305 90~430 5 2000mA 3600VAC

LS10-13B24R3P 10 85~305 90~430 24 420mA 3600VAC

LS10-13B15R3P 10 85~305 90~430 15 670mA 3600VAC

LS10-13B12R3P 10 85~305 90~430 12 830mA 3600VAC

LS10-13B09R3P 10 85~305 90~430 9 1100mA 3600VAC

LS10-13B05R3P 10 85~305 90~430 5 2000mA 3600VAC

LS10-13B03R3P 10 85~305 90~430 3.3 2000mA 3600VAC

LS10-13B03R3P-F 6.6 85~305 90~430 3.3 2000mA 3600VAC

LS10-13Dxx 3600VAC

LS10-13D1212-02 10 85~305 70~430 12,12 630mA,400mA 3600VAC

LS10-13DY524-02 10 85~305 70~430 5.7,24 910mA,200mA 3600VAC

LS10-13DY512-04 10 85~305 70~430 5.7,12 910mA,400mA 3600VAC

LS10-13DY505-06 10 85~305 70~430 5.7,5 1230mA,600mA 3600VAC

LS10-13D0505-06 10 85~305 70~430 5,5 1400mA,600mA 3600VAC

LS10-26BxxR3 4000VAC

LS10-26B24R3 10 85~528 100~745 24 420mA 4000VAC

LS10-26B15R3 10 85~528 100~745 15 670mA 4000VAC

LS10-26B12R3 10 85~528 100~745 12 830mA 4000VAC

LS10-26B09R3 10 85~528 100~745 9 1100mA 4000VAC

LS10-26B05R3 10 85~528 100~745 5 2000mA 4000VAC

LS10-26B03R3 6.6 85~528 100~745 3.3 2000mA 4000VAC

LS15-13BxxSS(-F) 3000VAC

LS15-13B24SS 15 85~305 100~430 24 625mA 3000VAC

LS15-13B15SS 15 85~305 100~430 15 1000mA 3000VAC

LS15-13B12SS 15 85~305 100~430 12 1250mA 3000VAC

LS15-13B09SS 15 85~305 100~430 9 1670mA 3000VAC

LS15-13B24SS-F 15 85~305 100~430 24 625mA 3000VAC

LS15-13B15SS-F 15 85~305 100~430 15 1000mA 3000VAC

LS15-13B12SS-F 15 85~305 100~430 12 1250mA 3000VAC

LS15-13B09SS-F 15 85~305 100~430 9 1670mA 3000VAC

LS15-13B05SS 14 85~305 100~430 5 2800mA 3000VAC

LS15-13B05SS-F 14 85~305 100~430 5 2800mA 3000VAC

LS15-13B03SS 9.9 85~305 100~430 3.3 3000mA 3000VAC

LS15-13B03SS-F 9.9 85~305 100~430 3.3 3000mA 3000VAC

LS15-23BxxDR3 4000VAC

LS15-23B24DR3 15 85~305 100~430 24 625mA 4000VAC

LS15-23B15DR3 15 85~305 100~430 15 1000mA 4000VAC

LS15-23B12DR3 15 85~305 100~430 12 1250mA 4000VAC

LS15-23B09DR3 15 85~305 100~430 9 1670mA 4000VAC

LS15-23B05DR3 15 85~305 100~430 5 3000mA 4000VAC

LS15-23B03DR3 9.9 85~305 100~430 3.3 3000mA 4000VAC

LS15-26BxxR3 3600VAC

LS15-26B24R3 15 176~528 248~745 24 625mA 3600VAC

LS15-26B15R3 15 176~528 248~745 15 1000mA 3600VAC

LS15-26B12R3 15 176~528 248~745 12 1250mA 3600VAC

LS15-26B09R3 15 176~528 248~745 9 1670mA 3600VAC

LS15-26B05R3 14 176~528 248~745 5 2800mA 3600VAC

LS15-26B03R3 9.9 176~528 248~745 3.3 3000mA 3600VAC
